Wiring Harness Repair Tools: Crimpers

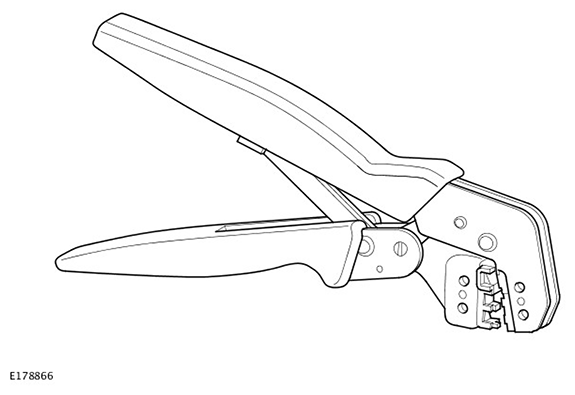

The crimpers have a moving jaw and a stationary jaw, with three different sized crimping enclosures. Each of the enclosures are identified by a red, blue or yellow colored dot which corresponds to the three colors of the pre-terminated leads and splice connector.
NOTE:
Replacement repair equipment can be ordered from the equipment workshop website; refer to the Replacement Repair Equipment in the introduction section.
| DESCRIPTION | PART NUMBER | QUANTITY |
|---|---|---|
| Crimpers | 418-116A | 1 |
| Wire Stripper | 418-672 | 1 |
