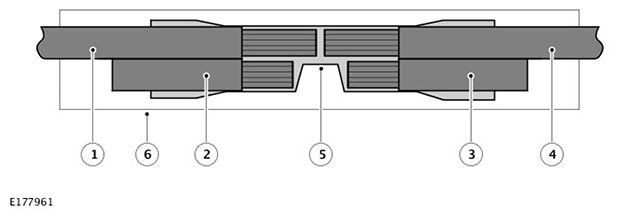

Splice Repair to Wire Smaller than 0.35mm2 Example

1. Original Wire (less than 0.35mm² )
2. Additional wire (0.35mm² or 0.5mm² )
3. Pre-terminated Lead or replacement wire (less than 0.35mm² )
4. Additional wire (0.35mm² or 0.5mm² )
5. Splice Connector
6. Glue Lined Heat Shrink Sleeve
