Wiring Harness Overlay: Description

The overlays and lower level assemblies are available from the parts catalogue and include such items as;

Antenna leads and other special cables
Front corner repair harnesses
Trunk/tailgate harnesses
Front and rear bumper harnesses
CAUTION:
- Any damaged cable/assemblies must not be repaired and must be replaced.
- The replacement overlay must follow the original wiring harness route, to avoid the risk of introducing electrical interference issues.

NOTE:

The original cable/assembly must left be in the wiring harness and the overlay taped to the wiring harness along the original route.
Where possible, when installing a replacement cable/assembly, cut off the unused ends of the damaged cable/assembly at their exit points from the host harness and discard.
The cut ends must be free from sharp edges. Any strands of wire must be taped over, to prevent damaging adjacent wires or cables or any personal injury.
The replacement cable/assembly must be attached with coverings to replicate the existing installation of the damaged cable/assembly.
If the cut end of the cable/assembly is in an area of the vehicle, which is exposed to moisture, i.e. the engine bay; Cover the cut end with glue-lined heatshrink, squeezed with pliers to seal the end and prevent moisture ingress.

Examples

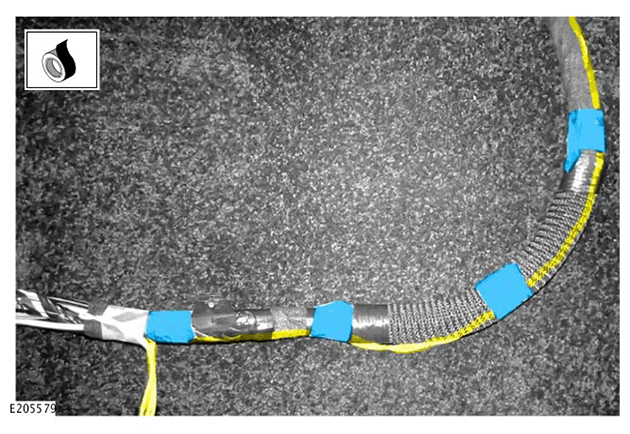

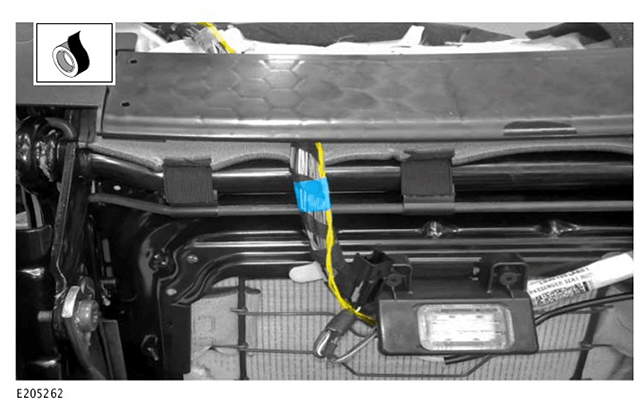

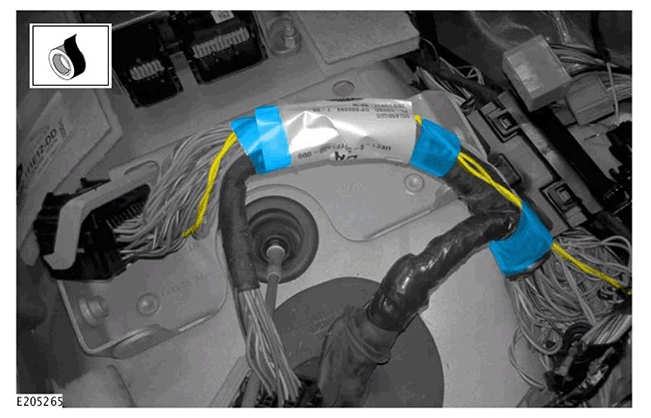

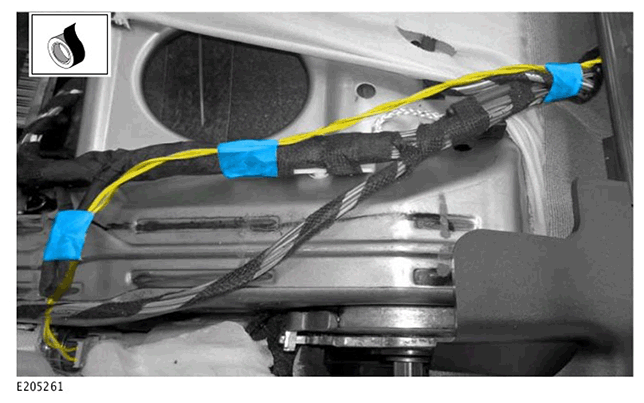

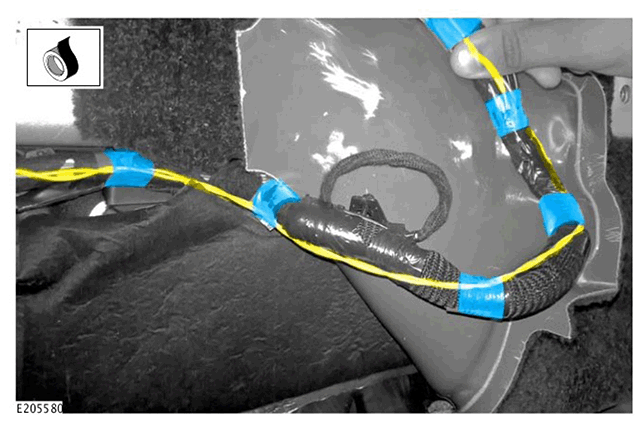

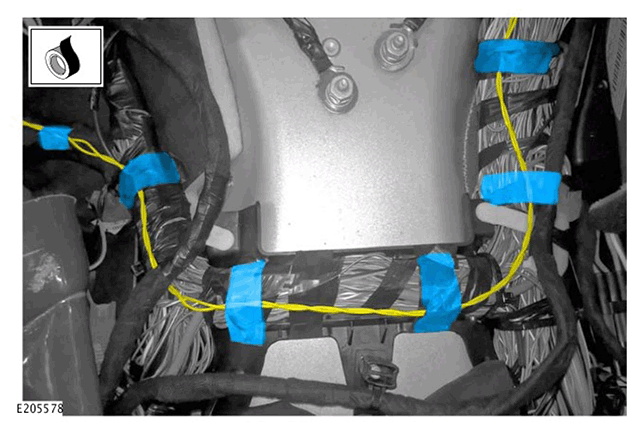

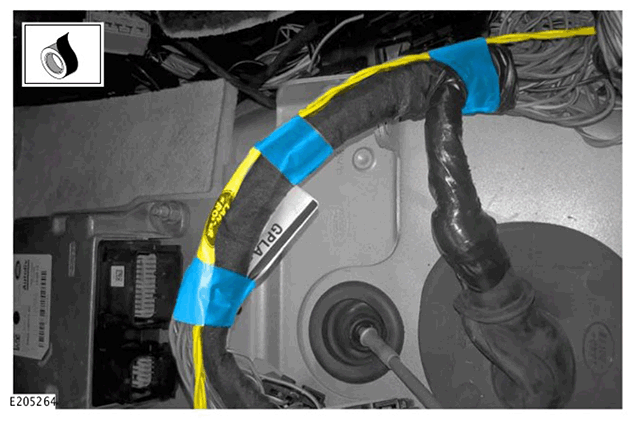

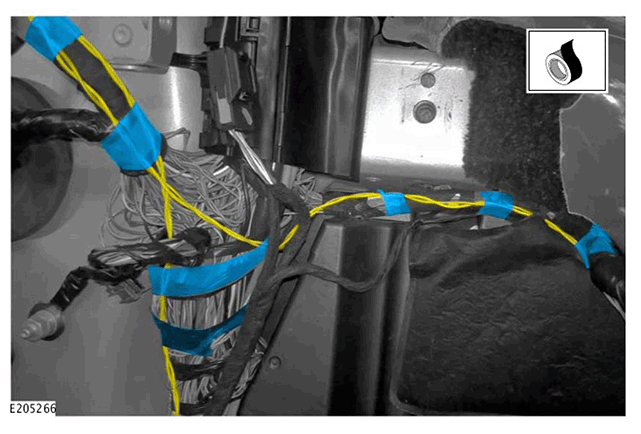

Some examples of installed wiring harness overlays are illustrated below:
