Windshield Wiper Pivot Arm (G1067046): Removal

CAUTION: Always protect paintwork and glass when removing exterior components.

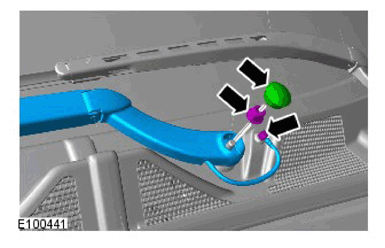

  1. G11420936
  2. G11420937

    Use special tool 501-065 Remover - windshield wiper pivot arm. Release the wiper arm

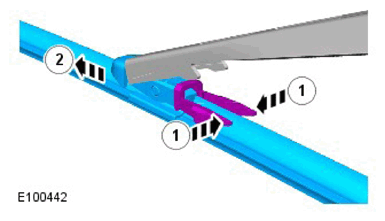

  3. NOTE: Do not disassemble further if the component is removed for access only.
    G11420938
