Windshield Washer Pump (G1062210): Removal

  1. Refer to: Fender Splash Shield (Front End Body Panels, Removal and Installation).

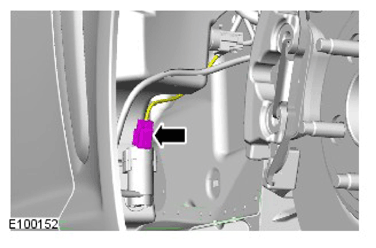

  2. G11420942

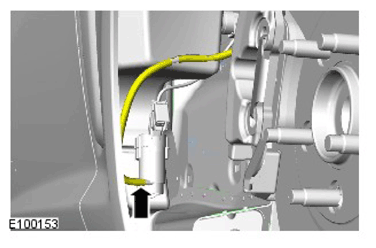

  3. CAUTION: Be prepared to collect escaping fluids.
    G11420943

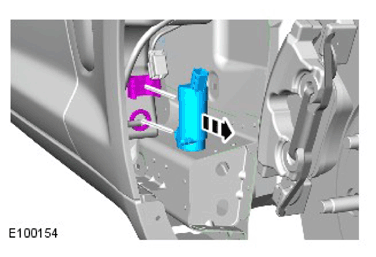

  4. CAUTION: Take extra care not to damage the seal.
    G11420944
