Headlamp Washer Pump (G1062215): Removal

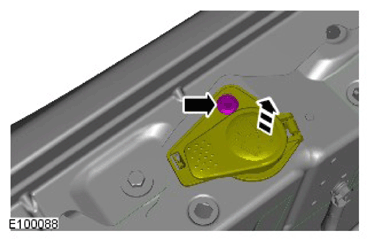

  1. G11420918
  2. Refer to: Fender Splash Shield (Front End Body Panels, Removal and Installation).
  3. CAUTION: Be prepared to collect escaping fluids.

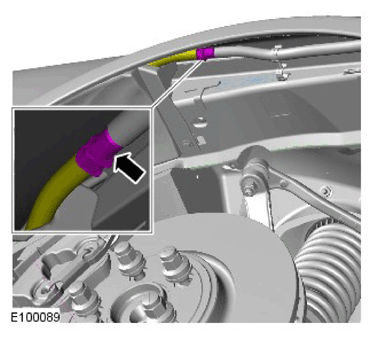

    G11420919

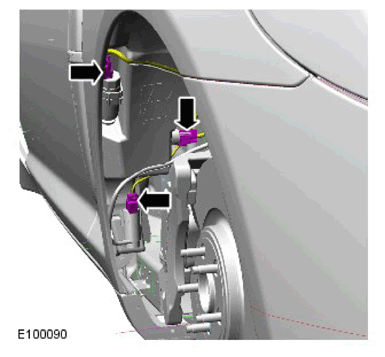

  4. G11420920
  5. CAUTION: Be prepared to collect escaping fluids.

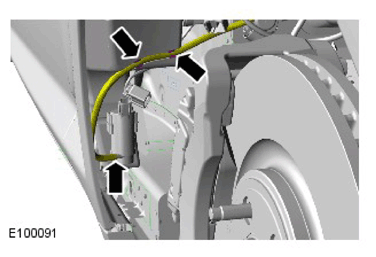

    G11420921

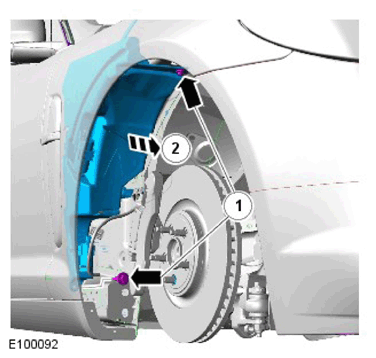

  6. G11420922
  7. CAUTION: Take extra care not to damage the seal.

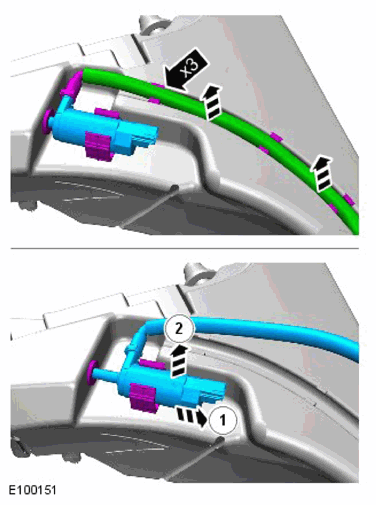

    G11420923
