Headlamp Washer Jet (G1448000): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Headlamp Assembly (Exterior Lighting, Removal and Installation).

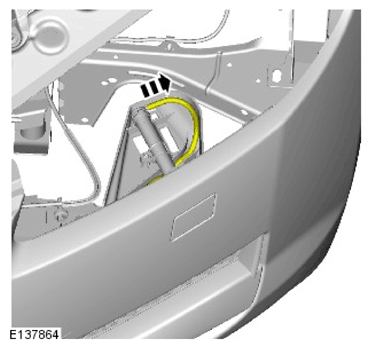

  2. NOTE: Left-hand shown, right-hand similar.
    G11420916

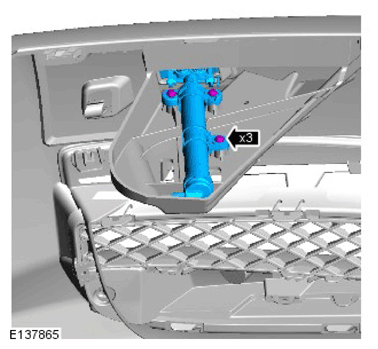

  3. NOTE: Left-hand shown, right-hand similar.
    G11420917
