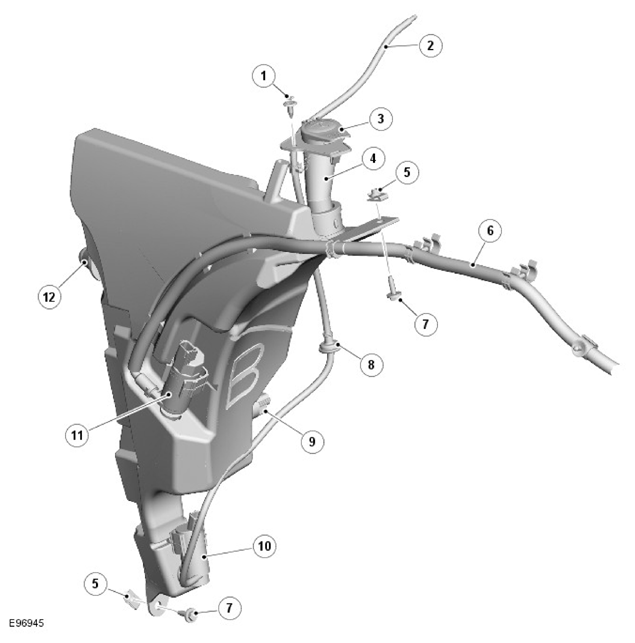

Windshield Washer Reservoir: Saloon
| ITEM | DESCRIPTION |
|---|---|
| 1 | Scrivet |
| 2 | Washer fluid hose - windshield |
| 3 | Windshield washer reservoir cap |
| 4 | Windshield washer reservoir filler neck |
| 5 | Captive nut (2 off) |
| 6 | Headlamp washer feed pipe to telescopic washer jets |
| 7 | Screw and washer (2 off) |
| 8 | Grommet |
| 9 | Washer fluid level sensor |
| 10 | Windshield washer pump |
| 11 | Headlamp washer pump |
| 12 | Location spigot |
