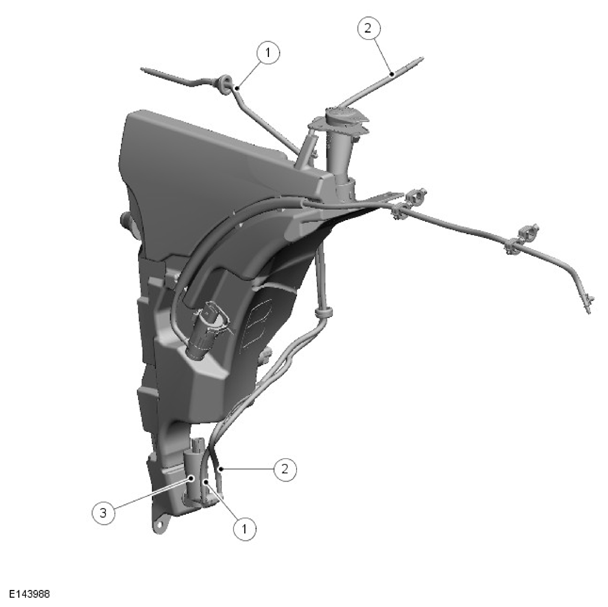

Windshield Washer Reservoir: SPORTBRAKE
| ITEM | DESCRIPTION |
|---|---|
| 1 | Washer fluid hose - rear window |
| 2 | Washer fluid hose - windshield |
| 3 | Windshield/rear window washer pump |
The washer reservoir is located in the RH wheel arch. The reservoir is a plastic molding and is secured in the wheel arch with 2 screws and washers and a scrivet. A level sensor is located in the reservoir and is connected to the CJB. The reservoir is fitted with a washer pump which supplies pressurized washer fluid to the windshield washer jets mounted on the wiper arms.
The reservoir has a capacity of 5.5 liters.
A filler cap is located at the top of the reservoir and is accessible from the engine compartment.
The pumps are located in rubber sealing grommets in holes in the reservoir and secured with clips. The pump fluid pipes have quick release connectors which mate with the pumps. The fluid level sensor is a push fit into a sealing grommet in one side of the reservoir body.
