Parking Aid Module (G1447964): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
  2. Refer to: Loadspace Left Trim Panel - 4-Door (Interior Trim and Ornamentation, Removal and Installation).

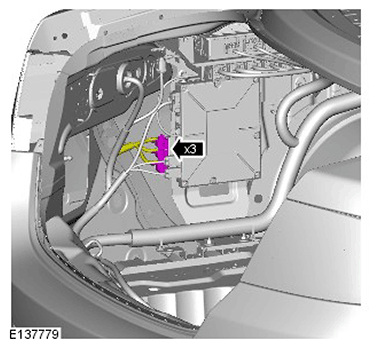

  3. G11422021

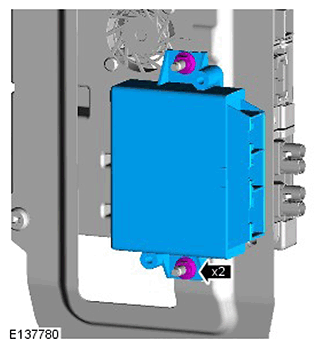

G11422022

Torque Specification: 10 Nm
