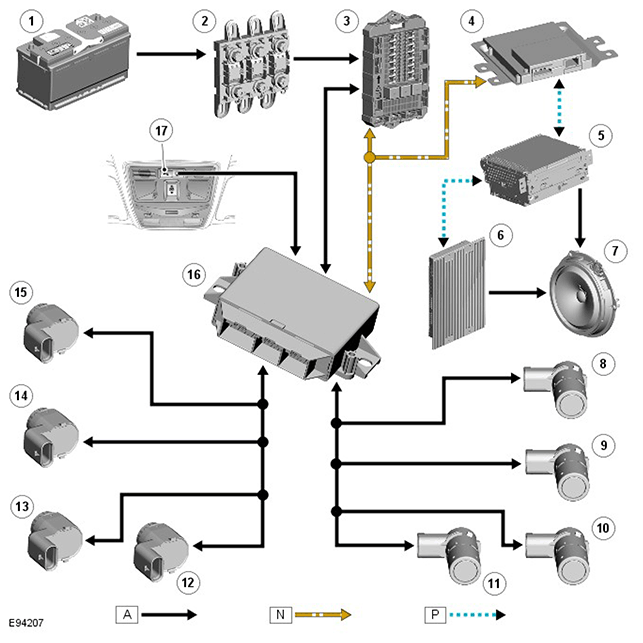

Control Diagram - Parking Aid
A = HARDWIRED; N = MEDIUM SPEED CAN BUS; P = MOST RING
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuses |
| 3 | RJB (rear junction box) |
| 4 | Entertainment system control module |
| 5 | Integrated audio module |
| 6 | Audio amplifier |
| 7 | Audio system speakers |
| 8 | RH (right-hand) outer rear sensor |
| 9 | RH inner rear sensor |
| 10 | LH (left-hand) inner rear sensor |
| 11 | LH outer rear sensor |
| 12 | LH outer front sensor |
| 13 | LH inner front sensor |
| 14 | RH inner front sensor |
| 15 | RH outer front sensor |
| 16 | Parking aid module |
| 17 | Parking aid switch |
