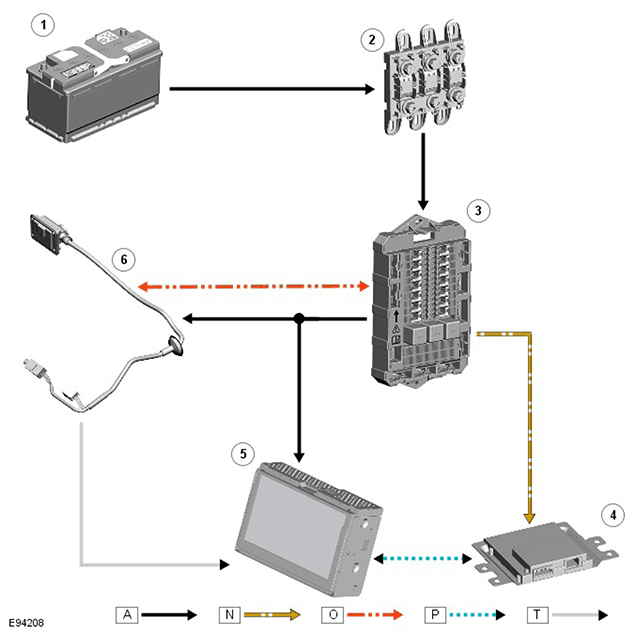

Control Diagram - Parking Aid Camera
A = HARDWIRED; N = MEDIUM SPEED CAN BUS; O = LIN BUS; P = MOST RING; T = CO-AXIAL CABLE
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Megafuses |
| 3 |
RJB |
| 4 |
Entertainment system control module |
| 5 |
Touch Screen Display (TSD) |
| 6 |
Parking aid camera |
