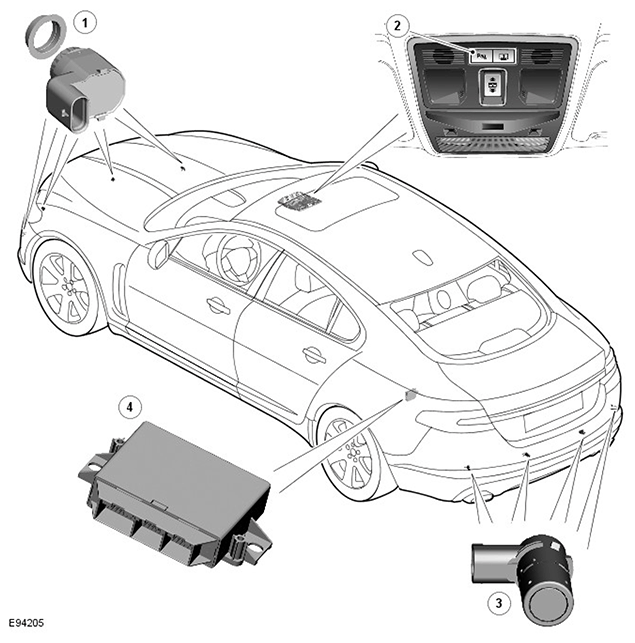

Component Location - Parking Aid

G11422004
ITEM DESCRIPTION
1 Front parking aid sensors (4 off)
2 Parking aid switch
3 Rear parking aid sensors (4 off)
4 Parking aid module
