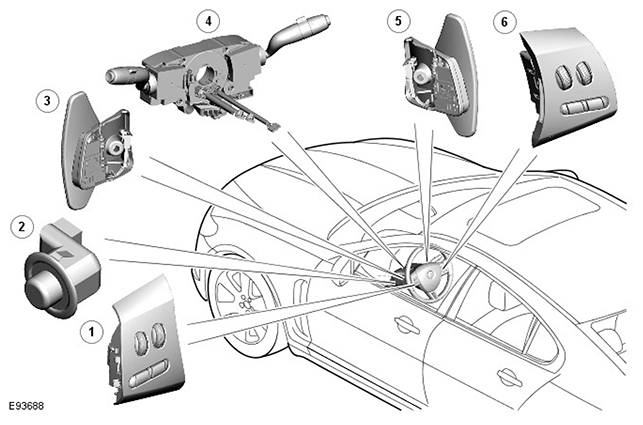

Steering Column Switches Component Location

G11414442
ITEM DESCRIPTION
1 Audio and telephone switches
2 Steering column adjustment switch
3 LH (left-hand) (-) gear change paddle switch
4 Steering column multifunction switches and clockspring
5 RH (right-hand) (+) gear change paddle switch
6 Speed control switches (Adaptive Speed Control switch pack shown, non adaptive speed control switch pack similar)
