RH Multifunction Switch

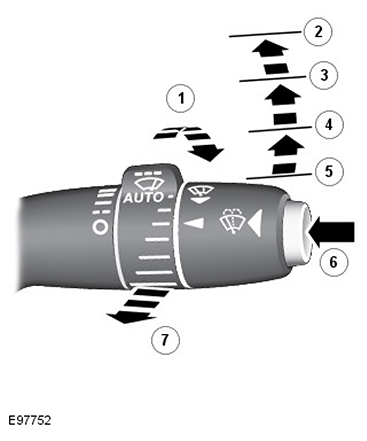

| ITEM | DESCRIPTION |
|---|---|
| 1 | Auto/intermittent rotary switch |
| 2 | Fast wipe |
| 3 | Slow wipe |
| 4 | Intermittent wipe |
| 5 | Off position |
| 6 | Wash/wipe |
| 7 | Flick wipe |
The RH multifunction switch controls the following windshield wiper functions:
- Flick wipe
- Intermittent wipe
- Slow speed wipe
- High speed wipe
- Wash/Wipe
- Headlamp powerwash
- Rain sensing/variable wipe selection.
The switch is located in a slot in the clockspring and secured with 2 plastic clips.
