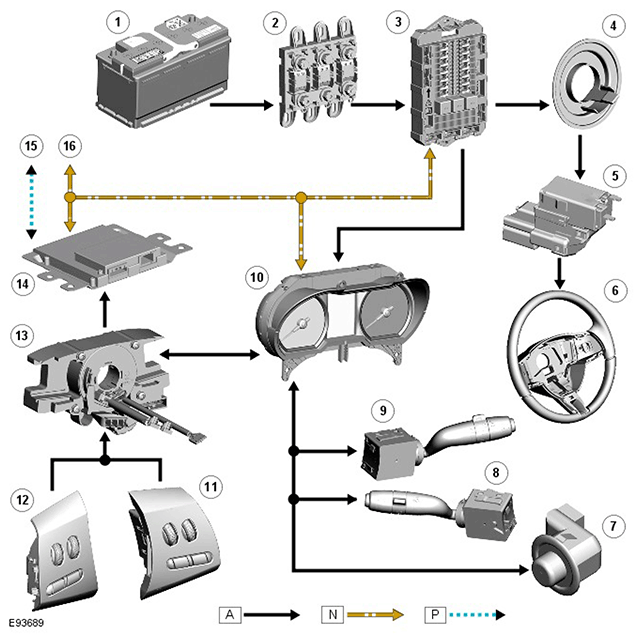

Control Diagram
NOTE:
A
= Hardwired; N
= Medium speed CAN bus; P
= Fibre Optic MOST ring
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) |
| 3 | CJB (central junction box) |
| 4 | Heated steering wheel slip rings |
| 5 | Heated steering wheel control module |
| 6 | Steering wheel heater element |
| 7 | Steering column adjustment switch |
| 8 | Steering column LH (left-hand) multifunction switch |
| 9 | Steering column RH (right-hand) multifunction switch |
| 10 | Instrument cluster |
| 11 | Speed control switches |
| 12 | Audio/telephone switches |
| 13 | Clockspring |
| 14 | Information and entertainment module |
| 15 | Media Oriented System Transport (MOST) ring connection to other vehicle systems |
| 16 | Medium speed CAN (controller area network) bus to other vehicle systems |
