Front Seat Control Switch (G1061309): Removal

  1. Refer to: FRONT ROW SEAT (G1058153)  (Seating, Removal and Installation).

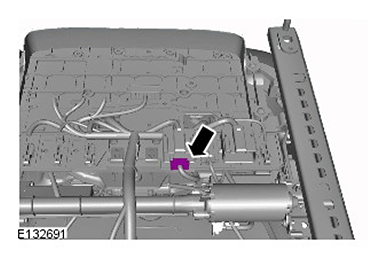

  2. G11423134

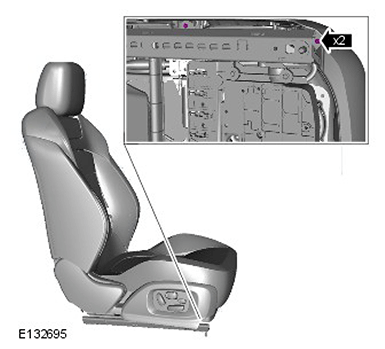

  3. G11423135

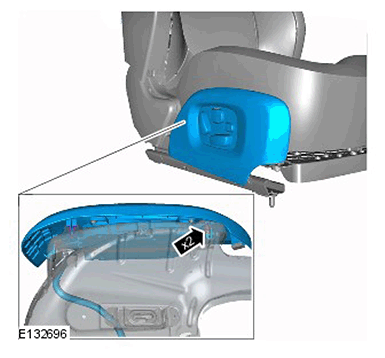

  4. G11423136
    • Remove and discard the retaining clips.

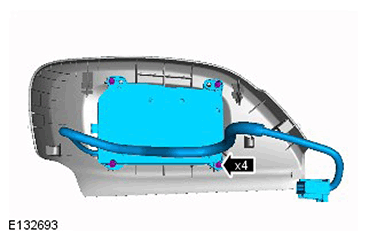

  5. G11423137
