Front Row Seat Backrest (G1058155): Removal

  1. Make the air bag supplemental restraint system (SRS) safe. For additional information, refer to: Standard Workshop Practices (General Information, Description and Operation).
  2. Disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  3. Remove the front seat.

    For additional information, refer to: Front Row Seat  (Seating, Removal and Installation).

  4. WARNING: This step requires the aid of another technician.
    CAUTION: Take extra care when handling the component.

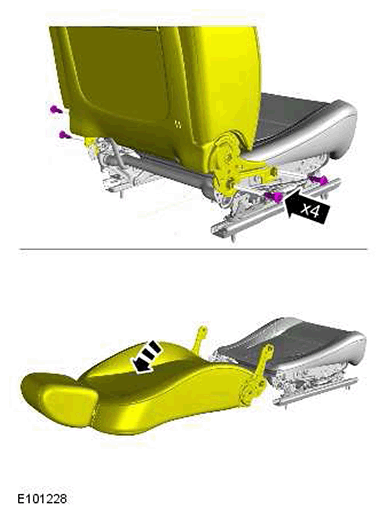

    G11423061

    Remove the front seat backrest assembly.

  5. Remove the front seat backrest cover.

    For additional information, refer to: Front Row Seat Backrest Cover  (Seating, Removal and Installation).

  6. Remove the backrest halo panel.
    • Release the 5 wiring harness clips.
  7. NOTE: Do not disassemble further if the component is removed for access only.

    Remove the front seat recliner motor.

    For additional information, refer to: Front Row Seat Backrest  (Seating, Removal and Installation).

  8. Remove the lumbar assembly.

    For additional information, refer to: Lumbar Assembly  (Seating, Removal and Installation).

  9. Remove the front seat head restraint motor.

    For additional information, refer to: Front Seat Head Restraint Motor  (Seating, Removal and Installation).
