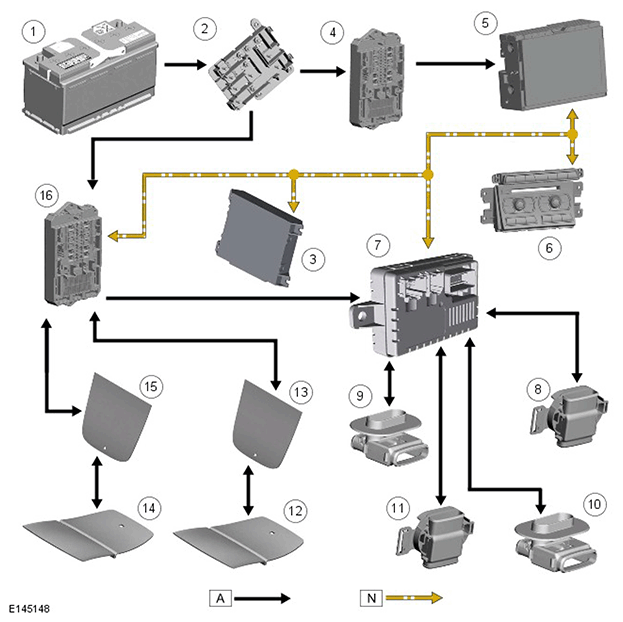

| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Automatic Temperature Control (ATC) module |
| 4 |
Rear Junction Box (RJB) |
| 5 |
Touch Screen (TS) |
| 6 |
Integrated Control Panel (ICP) |
| 7 |
Seat Climate Control Module (SCCM) |
| 8 |
Passenger climate seat backrest module |
| 9 |
Driver climate seat cushion module |
| 10 |
Passenger climate seat cushion module |
| 11 |
Passenger climate seat backrest module |
| 12 |
Driver seat cushion heater element |
| 13 |
Driver seat backrest heater element |
| 14 |
Passenger seat cushion heater element |
| 15 |
Passenger seat backrest heater element |
| 16 |
Central Junction Box (CJB) |
