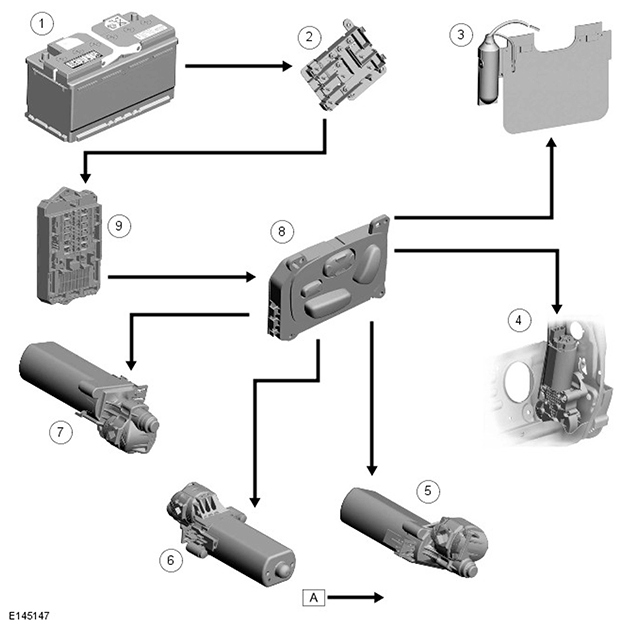

Control Diagram - Movement - Non-Memory Seats

G11423024
ITEM DESCRIPTION
1 Battery
2 Battery Junction Box (BJB)
3 Lumbar pump
4 Seat switchpack
5 Seat backrest recline motor
6 Seat tilt motor
7 Seat forward/rearward motor
8 Seat height motor
9 Central Junction Box (CJB)
