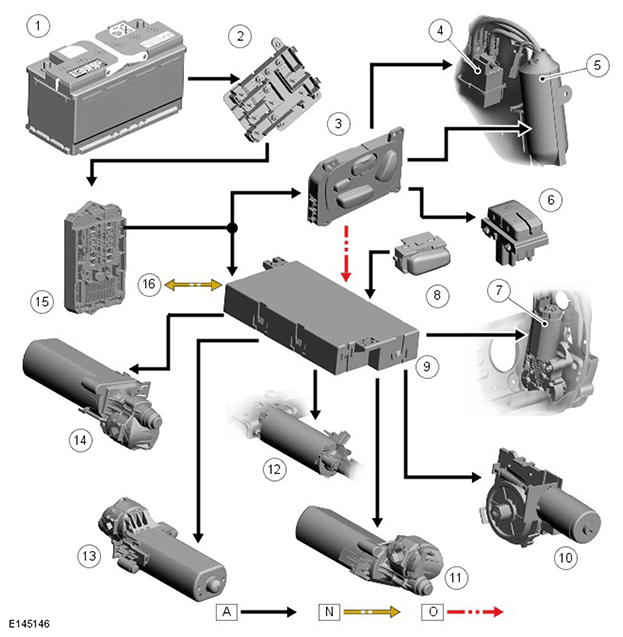

| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Seat switchpack |
| 4 |
Lumbar pump solenoids |
| 5 |
Lumbar pump |
| 6 |
Seat memory switchpack |
| 7 |
Seat backrest recline motor |
| 8 |
Seat away switch (passenger seat only - if fitted) |
| 9 |
Driver Seat Module (DSM) |
| 10 |
Head restraint motor |
| 11 |
Seat tilt motor |
| 12 |
Seat cushion extension motor |
| 13 |
Seat forward/rearward motor |
| 14 |
Seat height motor |
| 15 |
Central Junction Box (CJB) |
| 16 |
Medium Speed CAN bus to Instrument Cluster (IC) for steering column movement and driver door module for door mirror movement |
