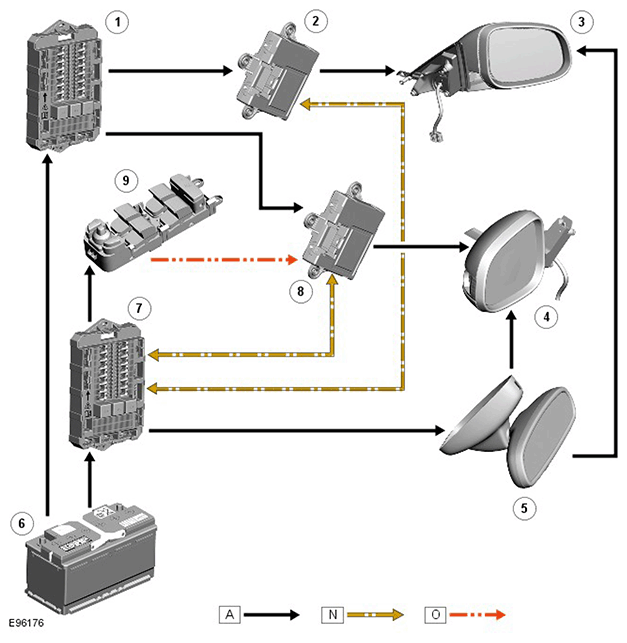

Control Diagram
NOTE:
A = Hardwired, N = Medium speed CAN (controller area network) bus, O = LIN (local interconnect network) bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | RJB (rear junction box) |
| 2 | RH (right-hand) door module |
| 3 | RH door mirror |
| 4 | LH (left-hand) side door mirror |
| 5 | Interior mirror |
| 6 | Battery |
| 7 | CJB (central junction box) |
| 8 | LH door module |
| 9 | Exterior mirror control switches |
