Speakers - Component Location (G1526728)
NOTE:
Meridian® Surround Audio System shown

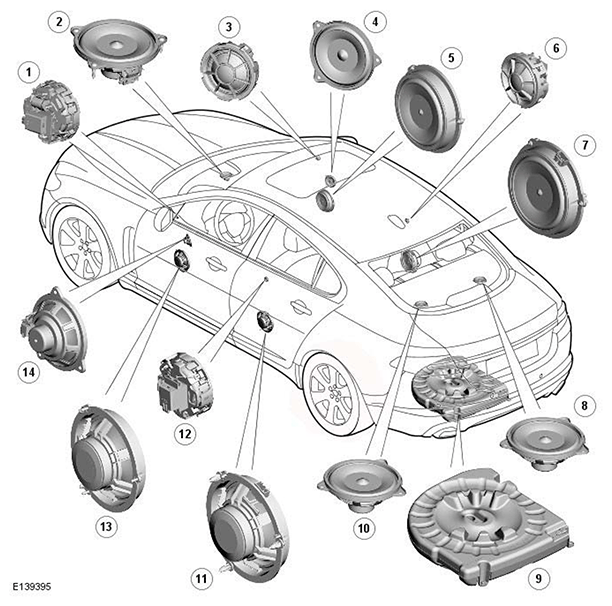

COMPONENT LOCATION - SHEET 1 OF 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Front left tweeter speaker (All models) |
| 2 | Front center co-axial speaker (Meridian® Surround Audio System only) |
| 3 | Front right tweeter speaker (All models) |
| 4 | Front right mid-range speaker (All models) |
| 5 | Front right bass speaker (All models) |
| 6 | Rear right tweeter speaker (All models) |
| 7 | Rear right bass speaker (All models) |
| 8 | Rear right co-axial speaker (Meridian® Surround Audio System only) |
| 9 | Sub-woofer (Not fitted to Standard Audio System) |
| 10 | Rear left co-axial speaker (Meridian® Surround Audio System only) |
| 11 | Rear left bass speaker (All models) |
| 12 | Rear left tweeter speaker (All models) |
| 13 | Front left bass speaker (All models) |
| 14 | Front left mid-range speaker (All models) |

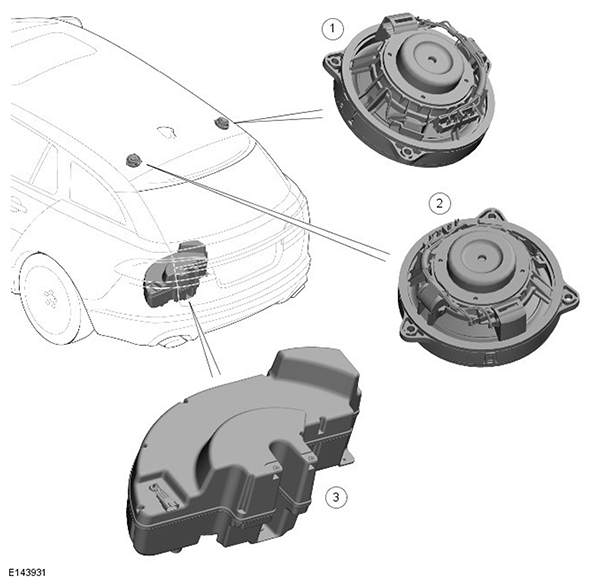

COMPONENT LOCATION - SHEET 2 OF 2 - SPORTBRAKE
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear right co-axial speaker (Meridian® Surround Audio System only) |
| 2 | Rear left co-axial speaker (Meridian® Surround Audio System only) |
| 3 | Sub-woofer (Not fitted to Standard Sound System) |
