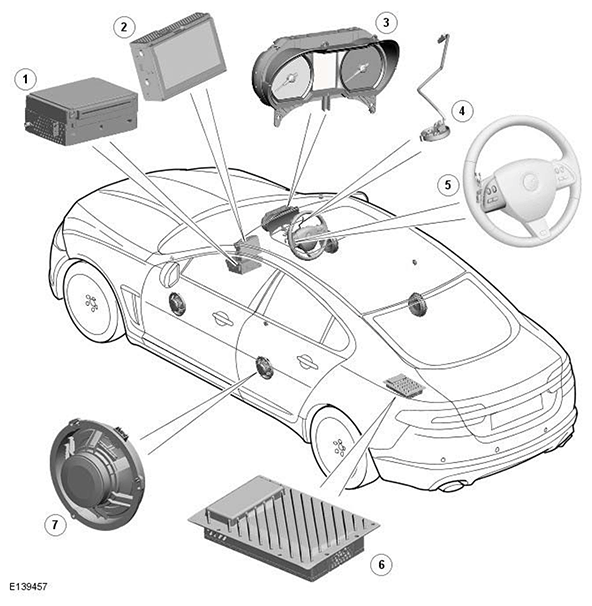

Cellular Phone - Component Location (G1526733)
Cellular Phone - Component Location (G1526733)
COMPONENT LOCATION
ITEM
DESCRIPTION
1
Integrated Audio Module (IAM)
2
Touch Screen Display (TSD)
3
Instrument cluster
4
Microphone
5
Steering wheel controls
6
Audio power amplifier
7
Speakers
