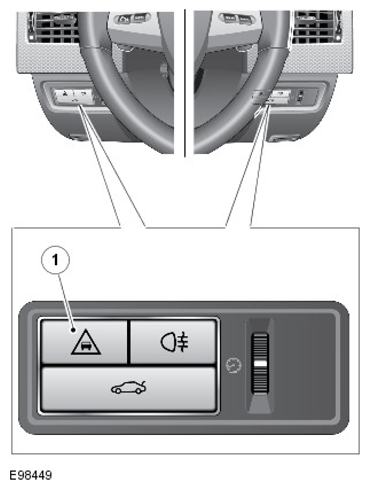

Forward Alert Switches

ITEM	DESCRIPTION
1	Forward alert switch

The forward alert system utilizes the adaptive speed control system components. Forward alert is turned on and off independently of adaptive speed control, via a switch in the auxiliary lighting switch mounted in the lower outboard knee bolster. Forward alert will notify the driver by means of a chime, and warning indicator in the instrument cluster and indication in the message center, when a target vehicle comes into range. The system will NOT use throttle or brake intervention to slow the vehicle.

The forward alert switch is connected to the instrument cluster in a resistive ladder with the luggage compartment opening switch and the fuel filler flap switch. The instrument cluster sends the forward alert information to the adaptive speed control radar sensor on the CAN bus.

NOTE: This system is intended as a driver aid and should be used as such. The system is NOT a collision warning or avoidance device.

The system sensitivity can be adjusted in the same manner as the Adaptive Speed Control, via the steering wheel mounted switches. Each adjustment is accompanied by a message in the message center.
