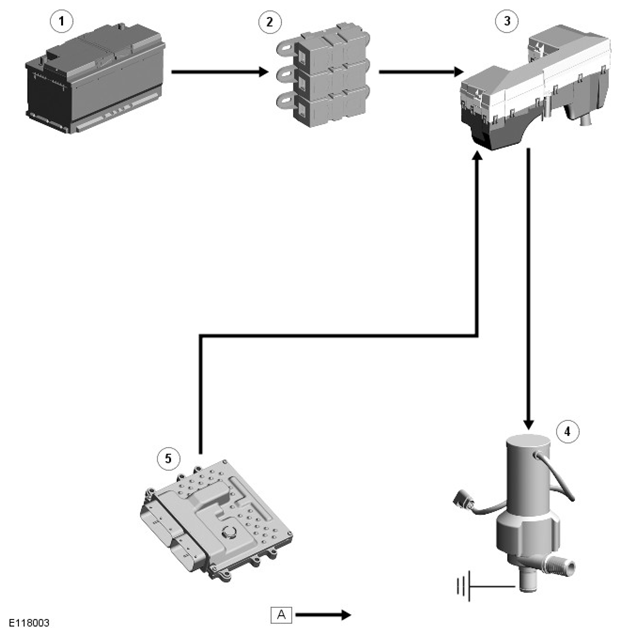

Control Diagram: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
BJB (battery junction box) (250 A megafuse) |
| 3 |
EJB (engine junction box) |
| 4 |
Charge air coolant pump |
| 5 |
ECM (engine control module) |
