Charge Air Coolant Pump
WARNING: This page is about a different variant/trim than selected.

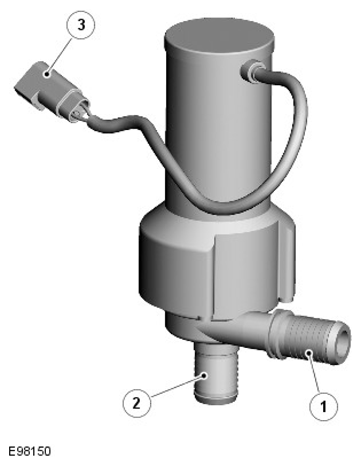

| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant outlet connection |
| 2 | Coolant inlet connection |
| 3 | Electrical connector |
The charge air coolant pump is an electric pump attached to the RH (right-hand) side of the charge air radiator. Hoses connect the inlet of the charge air coolant pump to the charge air radiator, and the outlet to the charge air coolers. An electrical connector provides the interface between the motor of the charge air coolant pump and the vehicle wiring.
