Section 72 (Supercharger Cooling - V6 S/C 3.0L Petrol -- XF/X250)
>>
Supercharger Cooling - V6 S/C 3.0L Petrol
>>
Description And Operation
>>
Supercharger Cooling - System Operation And Component Description (G1791730)
>>

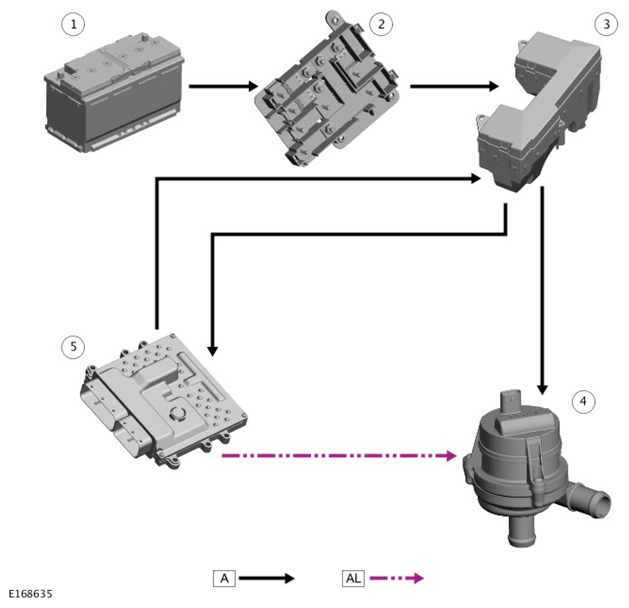

Control Diagram
>>
Notes
Control Diagram: Notes
WARNING:
This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired;
AL
= PWM (Pulse Width Modulation).
ITEM
DESCRIPTION
1
Battery
2
Battery Junction Box (BJB)
3
Engine Junction Box (EJB)
4
Charge air coolant pump
5
Engine Control Module (ECM)
