Coolant Pump (G1085724): Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Cooling System Draining And Vacuum Filling (G1189634) (Engine Cooling - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).
Refer to: Air Cleaner Outlet Pipe T-Connector (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Left Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Left Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Right Air Cleaner (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

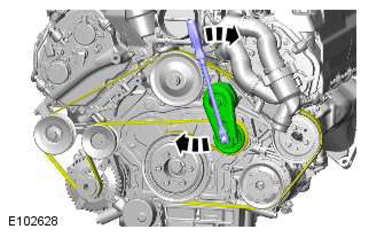

Refer to: Supercharger Belt (Accessory Drive - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

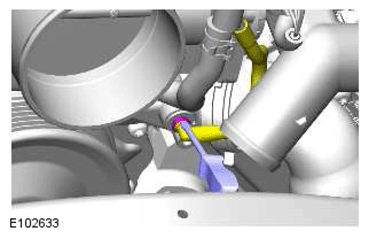

Torque Specification: 40 Nm

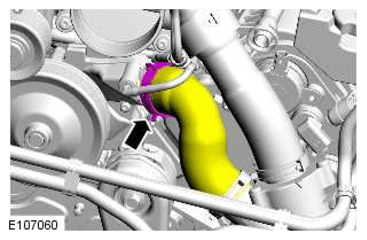

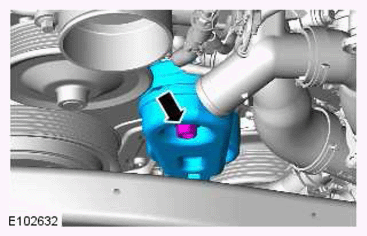

WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

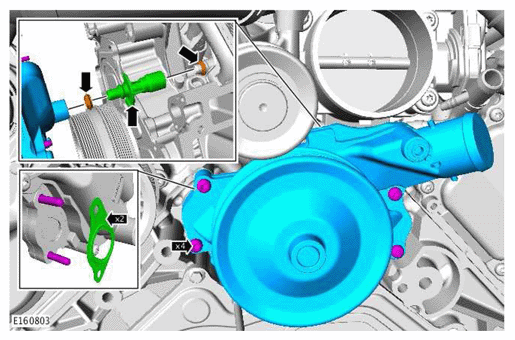

Torque Specification: 12 Nm
