Heater Manifold

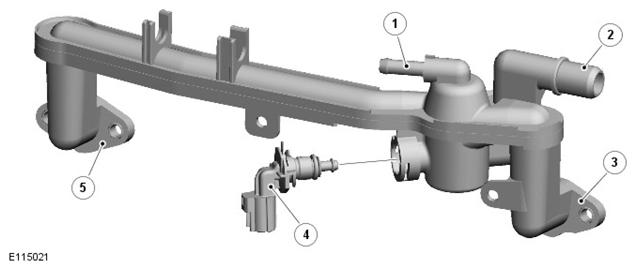

G11418525
ITEM DESCRIPTION
1 Throttle body heater hose connection
2 Heater core supply hose connection
3 RH cylinder head connection
4 Engine coolant temperature sensor
5 LH cylinder head connection
