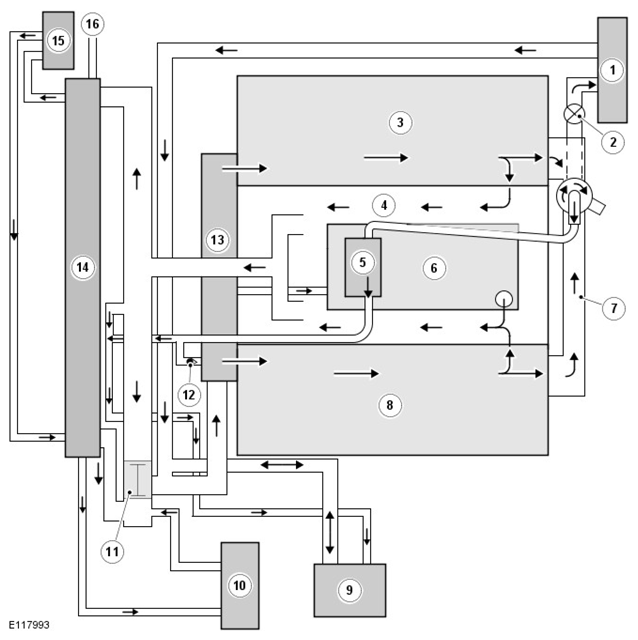

Engine Cooling Flow Diagram - Supercharger Vehicles
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core |
| 2 | Bleed screw |
| 3 | RH cylinder head |
| 4 | Cylinder block |
| 5 | Throttle |
| 6 | Engine oil cooler |
| 7 | Heater manifold |
| 8 | LH cylinder head |
| 9 | Expansion tank |
| 10 | Transmission fluid cooler |
| 11 | Thermostat |
| 12 | Check valve |
| 13 | Coolant pump |
| 14 | Radiator |
| 15 | Auxiliary radiator |
| 16 | Connection with supercharger cooling system |
