Warning Indicator Functionality: Notes

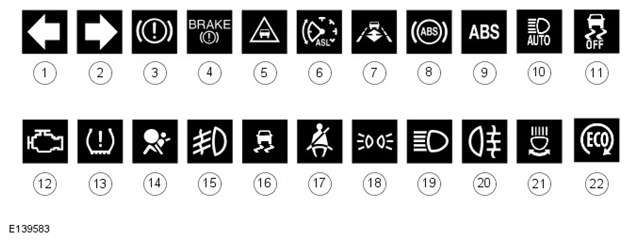

| ITEM | DESCRIPTION |
|---|---|
| 1 | LH turn signal |
| 2 | RH turn signal |
| 3 | Brake warning indicator (all except USA) |
| 4 | Brake warning indicator (USA only) |
| 5 | Forward alert |
| 6 | Automatic Speed Limiter (ASL) |
| 7 | Adaptive speed control |
| 8 | ABS (anti-lock brake system) warning |
| 9 | ABS warning (NAS) |
| 10 | Auto high beam |
| 11 | Dynamic stability control (DSC) off |
| 12 | MIL (malfunction indicator lamp) |
| 13 | TPMS (tire pressure monitoring system) |
| 14 | Airbag warning |
| 15 | Front fog lamps |
| 16 | Dynamic Stability Control (DSC) warning/operation indicator |
| 17 | Seat belt warning |
| 18 | Side lights |
| 19 | High beam |
| 20 | Rear fog lamps |
| 21 | Adaptive front lighting system |
| 22 | ECO Stop/start |
The functionality for each of the above warning indicators is described in the following sections:
