Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH loadspace trim panel.

    For additional information, refer to: Loadspace Trim Panel - Convertible

    2. CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: The ignition must be switched off.

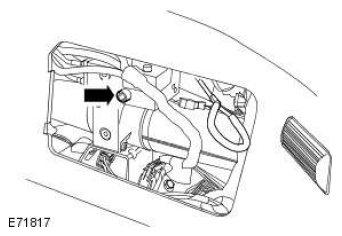

  2. G11524672

    Release the convertible top system pressure.

    • Loosen the Allen bolt up to a maximum of 2 complete turns.

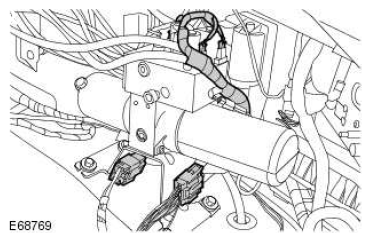

  3. G11524673

    Disconnect the convertible top hydraulic pump electrical connectors.

    • Release the 2 electrical connectors from the convertible top pump bracket.

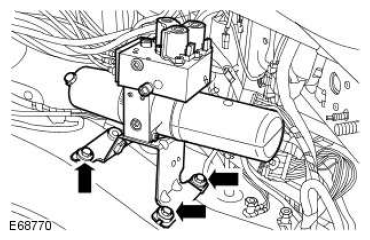

  4. G11524674

    Release the convertible top hydraulic pump.

    • Remove the 3 bolts.
    5. CAUTION: Always plug any open connections to prevent contamination.

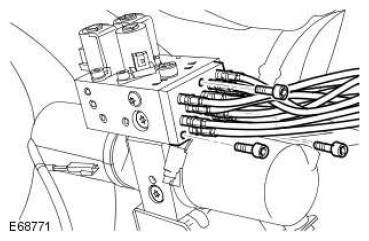

  5. G11524675

    Disconnect the convertible top hydraulic pump hoses.

    • Remove the 3 Allen bolts.
    • Release the hose retaining clamp.
    • Remove and discard the O-ring seals.
  6. Remove the convertible top hydraulic pump.
