Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the convertible top front latches.
    • Depress the switch.

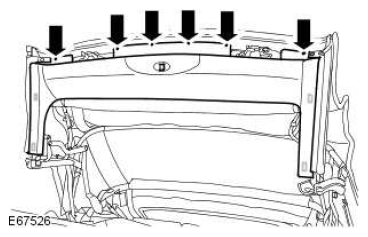

  2. G11524631

    Remove the header rail upper trim panel.

    • Remove the 6 screws.
    • Release the 4 clips.
