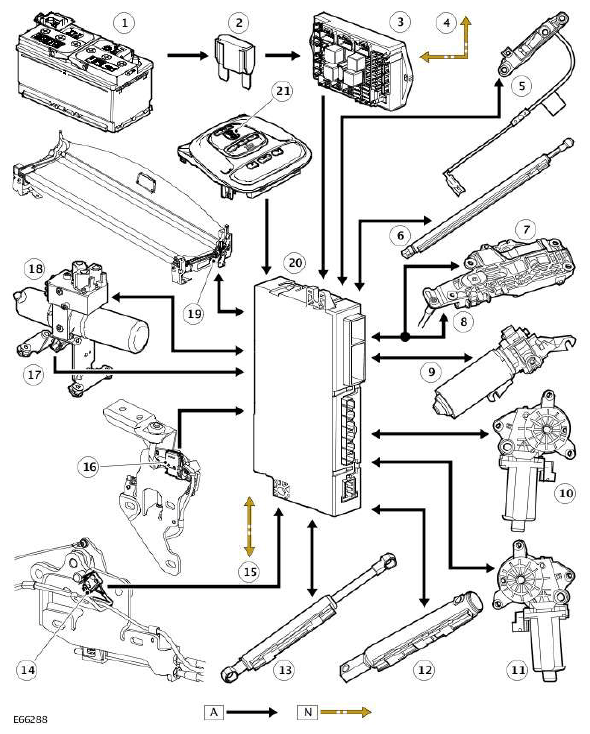

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Auxiliary junction box |
| 4 | Controller Area Network (CAN) input and output signals to and from various other vehicle systems |
| 5 | Convertible top latched sensor |
| 6 | Tonneau panel sensor |
| 7 | Front latch open sensor |
| 8 | Front latch close sensor |
| 9 | Front latch motor |
| 10 | RH quarter glass motor |
| 11 | LH quarter glass motor |
| 12 | Main bow sensors (3 off) |
| 13 | Tension bow sensors (2 off) |
| 14 | Tonneau panel switch 1 |
| 15 | Controller Area Network (CAN) input and output signals to and from various other vehicle systems |
| 16 | Tonneau panel switch 2 |
| 17 | Pump motor temperature sensor |
| 18 | Pump motor |
| 19 | Luggage separator position sensor |
| 20 | Convertible top control module |
| 21 | Convertible top open and close switch |
