Tonneau Panel Cover

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

A fully automatic flush mounted aluminum tonneau cover panel protects the stowed top.

WARNING: Special care must be taken when carrying out maintenance in the area underneath the aluminum tonneau cover. After approximately five minutes the hydraulic pressure is lost due to the release of the spool valves to prevent the valves overheating. A suitable support must be used to prevent the aluminum tonneau cover falling when the hydraulic pressure is released.

The aluminum tonneau cover panel trim also incorporates Roll Over Protection hoop doors. The roll over protection system is deployed through the hoop doors and rear screen in the event of a vehicle roll over situation.

For additional information, refer to: Air Bag Supplemental Restraint System (SRS)

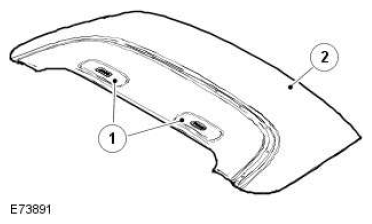

ITEM	DESCRIPTION
1	Hoop doors
2	Aluminum tonneau cover panel

The hydraulic pump, motor and valve block assembly is located in the RH luggage area. The fluid reservoir is filled with Pentosin hydraulic oil. Two fluid levels are marked on the pump reservoir body, the upper mark denotes the fluid level when the top is fully lowered and the lower mark denotes the level when the top is fully raised. The hydraulic pump supplies a maximum pressure of approximately 140 bar during convertible top operation. When the pump is idle the system pressure is approximately 0.1 bar.

NOTE: The convertible top hydraulic system is 'self-bleeding' and does not require action to expel trapped air.
