J - Convertible Top Open And Close Switch

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

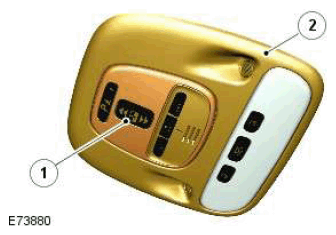

G11524568
ITEM DESCRIPTION
1 Open and Close switch
2 Overhead console

The convertible top open and close switch is located in the overhead console. The switch is a momentary switch that is normally open. When switched to ground the convertible top will start its open or close motion depending on which operation has been requested.
