I - Convertible Top Latched Sensor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

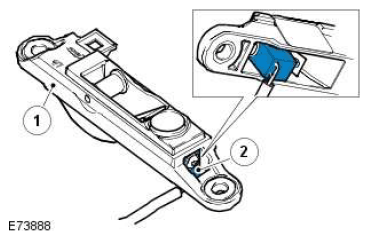

G11524567
ITEM DESCRIPTION
1 Latching bracket
2 Hall sensor

The convertible top latched sensor is a Hall effect sensor located in the LH latching bracket. The sensors function is to inform the control module of when the convertible top is in the closed position.
