H - Front Latch Open And Close Sensors

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

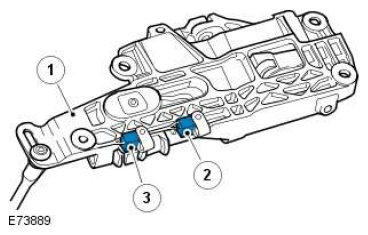

ITEM	DESCRIPTION
1	Latch plate
2	Front latch open sensor
3	Front latch closed sensor

The front latch open and closed sensors are Hall effect sensors located in the LH front latch plate. These sensors inform the control module of when the latch is in the open or closed position.
