G - Luggage Separator Position Sensor
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

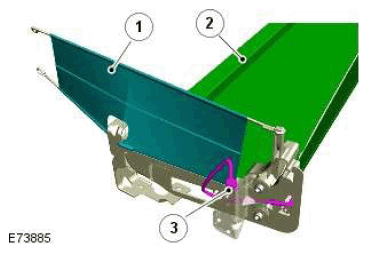

| ITEM | DESCRIPTION |
|---|---|
| 1 | Cargo net |
| 2 | Luggage separator (roller blind) |
| 3 | Luggage separator position sensor |
The Luggage separator position sensor is a Hall effect sensor located on the LH luggage separator housing bracket. The sensor informs the control module of when the separator is in the correct position. When the separator is in the correct position there is enough space in the luggage compartment to stow the convertible top when open.
