E - Pump Motor Temperature Sensor
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

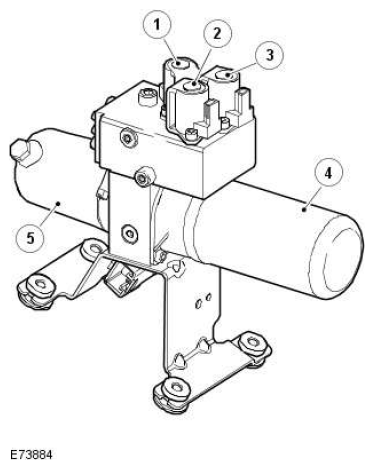

| ITEM | DESCRIPTION |
|---|---|
| 1 | Tension bow up solenoid valve |
| 2 | Tension bow down solenoid valve |
| 3 | Tonneau panel solenoid valve |
| 4 | Hydraulic pump |
| 5 | Hydraulic fluid reservoir |
The hydraulic fluid temperature sensor is a Negative Temperature Coefficient (NTC) sensor, which is integral to the pump assembly. The sensor informs the control module as to the temperature of the hydraulic fluid. If the fluid temperature exceeds a predetermined value, the control module will stop pump operation to prevent the valve block from overheating. Once the fluid temperature decreases below the predetermined value, the control module will then resume pump operation.
