D - Tonneau Panel Switch 1

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

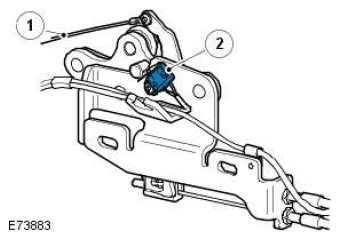

ITEM	DESCRIPTION
1	Emergency release cable
2	Tonneau panel switch

Tonneau panel switch 1 is located on the RH lever assembly. This switch is a normally open microswitch that, when switched to ground, informs the control module that the RH side of the tonneau panel is closed.
