C - Tonneau Panel Open Sensor

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G11524561

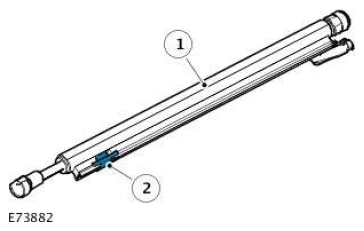

ITEM DESCRIPTION
1 Tonneau panel piston tube assembly
2 Tonneau panel open sensor

The tonneau panel open sensor is a Hall effect sensor located in the tonneau panel piston tube assembly. The piston tube assembly is located between the RH base latch plate and the lever assembly. This sensor informs the control module of when the tonneau panel is in the open position so the convertible top can be stowed.
