B - Main Bow Sensors
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

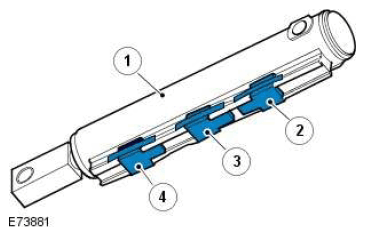

| ITEM | DESCRIPTION |
|---|---|
| 1 | Main bow piston tube assembly |
| 2 | Main bow 'In' sensor |
| 3 | Main bow 'Center' sensor |
| 4 | Main bow 'Out' sensor |
The main bow sensors are Hall effect sensors located in the main bow piston tube assembly. The piston tube assembly is located on the RH main bearing bracket assembly. These sensors sense the position of the main bow piston so the control module knows the exact position of the convertible top.
