Adjuster Plate
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

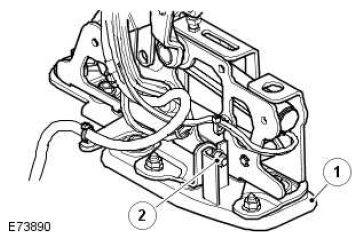

The convertible top frame, actuation levers and main bow hydraulic cylinder assembly is located on the vehicle body accurately using a steel adjuster plate, which is set to the body using adjustable shims.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Steel adjuster plate |
| 2 | Adjuster |
CAUTION:
Under no circumstances must the top steel adjuster plates be released, as they are set and adjusted to the body during manufacture, providing an accurate location for the convertible top frame. Service action and special tools will be required to reset the plate if this area of the vehicle requires service.
