A - Tension Bow Sensors
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

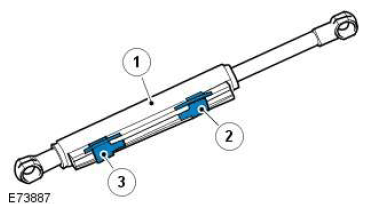

| ITEM | DESCRIPTION |
|---|---|
| 1 | Tension bow piston tube assembly |
| 2 | Tension bow 'In' sensor |
| 3 | Tension bow 'Out' sensor |
The tension bow sensors are Hall effect sensors located in the tension bow piston tube assembly. The piston tube assembly is located next to the LH tension bow linkage. These sensors inform the control module as to the position of the convertible top tension bow assembly.
