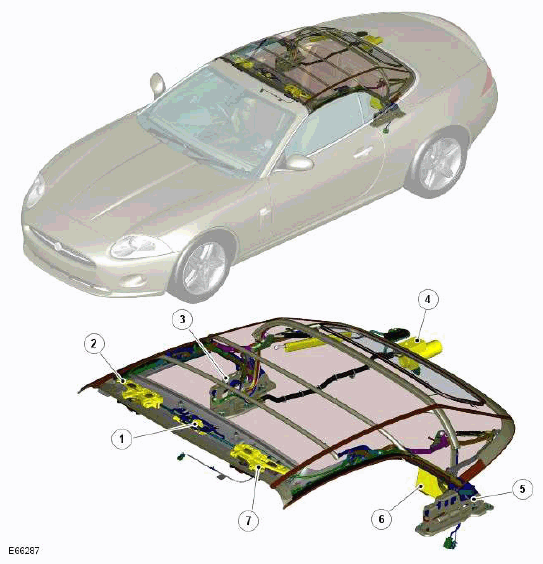

Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

ITEM	DESCRIPTION
1	Front latch motor
2	RH front latch plate
3	RH actuation lever assembly
4	Valve block and motor
5	LH actuation lever assembly
6	Convertible top control module
7	LH front latch plate
