Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the convertible top front latches.
    • Depress the switch.

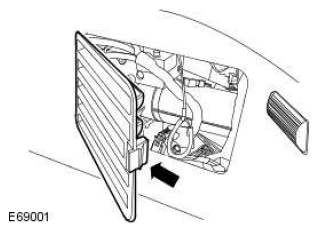

  2. G11524677

    Remove the convertible top hydraulic pump access panel

    • Release the clip.
  3. CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: The ignition must be switched off.

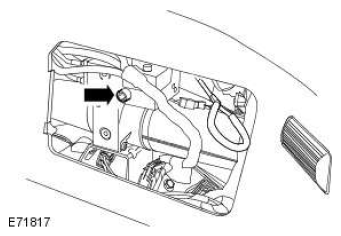

    G11524678

    Release the convertible top system pressure.

    • Loosen the Allen bolt up to a maximum of 2 complete turns.

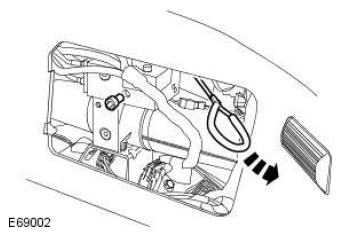

  4. G11524679

    Release the convertible top compartment lid.

    • Release using the cable.
  5. NOTE: Support as necessary.

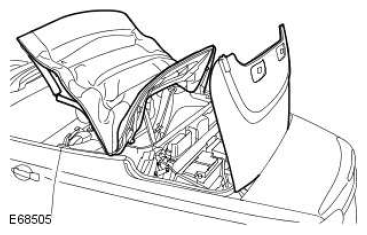

    G11524680
    NOTE: Open the convertible top to the position shown.

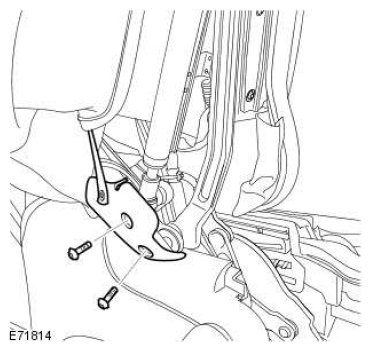

  6. G11524681

    Release the cylinder cover.

    • Remove the 2 Torx screws.

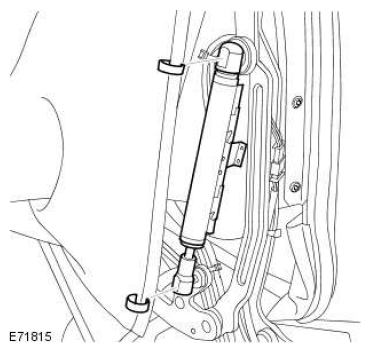

  7. G11524682

    Release the hydraulic cylinder.

    • Release the 2 clips.
    8. CAUTION: Fluid loss is unavoidable care must be taken to protect the interior of the vehicle.

  8. Disconnect the hydraulic cylinder lines.

    • Carefully release the 2 clips.
    • Withdraw the hydraulic lines from the cylinder, remove and discard the O-rings.

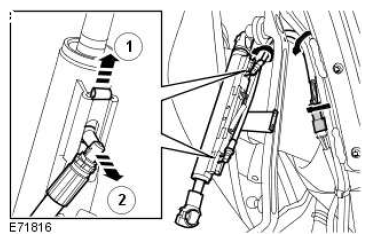

  9. G11524683

    Remove the hydraulic cylinder.

    • Remove and discard the 3 cable ties.
    • RH hydraulic cylinder only: Disconnect the electrical connector.
