Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the hydraulic cylinder lines.
    • Lubricate and install the new O-rings.
    • Connect the hydraulic lines to the cylinder.
    • Secure with the clips.
  2. Install the hydraulic cylinder.
    • RH hydraulic cylinder only: Connect the electrical connector.
    • Secure with cable ties.
    • Secure with the clips.
  3. Install the cylinder cover.
    • Tighten the Torx screws.
  4. Close the convertible top.
    5. NOTE: The ignition must be switched off.

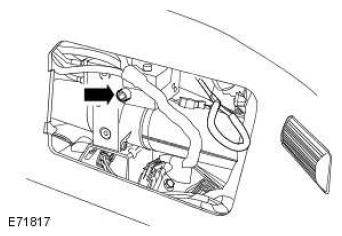

  5. G11524684

    Tighten the convertible top system pressure Allen bolt.

    • Tighten to 2 Nm.
  6. Install the convertible top hydraulic pump access panel
    • Secure in the clip.
  7. Operate the convertible top fully in each direction.
