Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the convertible top.
  2. Remove the header rail upper trim panel.

    For additional information, refer to: Header Rail Upper Trim Panel

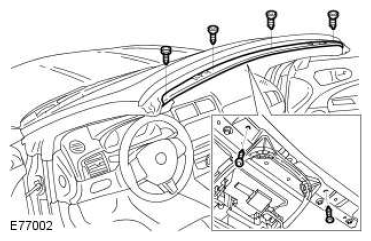

  3. G11524699

    Remove the header rail.

    • Remove the 6 screws.

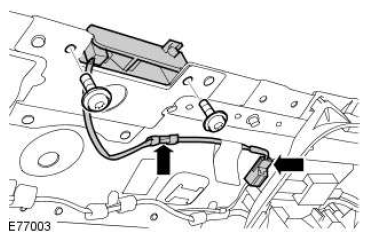

  4. G11524700

    Remove the convertible to latch striker.

    • Remove the 2 Torx bolts.
    • Release the electrical harness clip.
    • Disconnect the electrical connector.
